Hubbell 15A Explosion-Proof Industrial Plug | NEMA 5-15P | Class I Hazardous Location

SKU 250-XP-PL

Hubbell explosion-proof cord plug for industrial power connections. A factory-sealed cord entry and aluminum housing support use in compatible industrial cord assemblies and equipment connections.

In stock

Voltage Rating

$121.68/ unit

1
Request a Quote

Product details

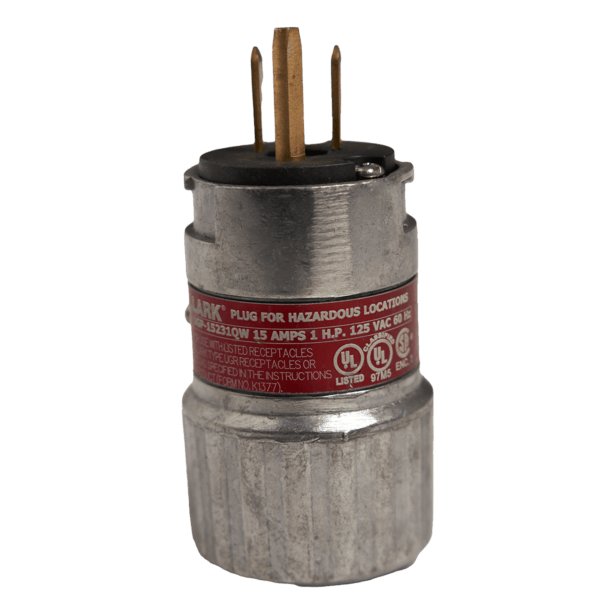

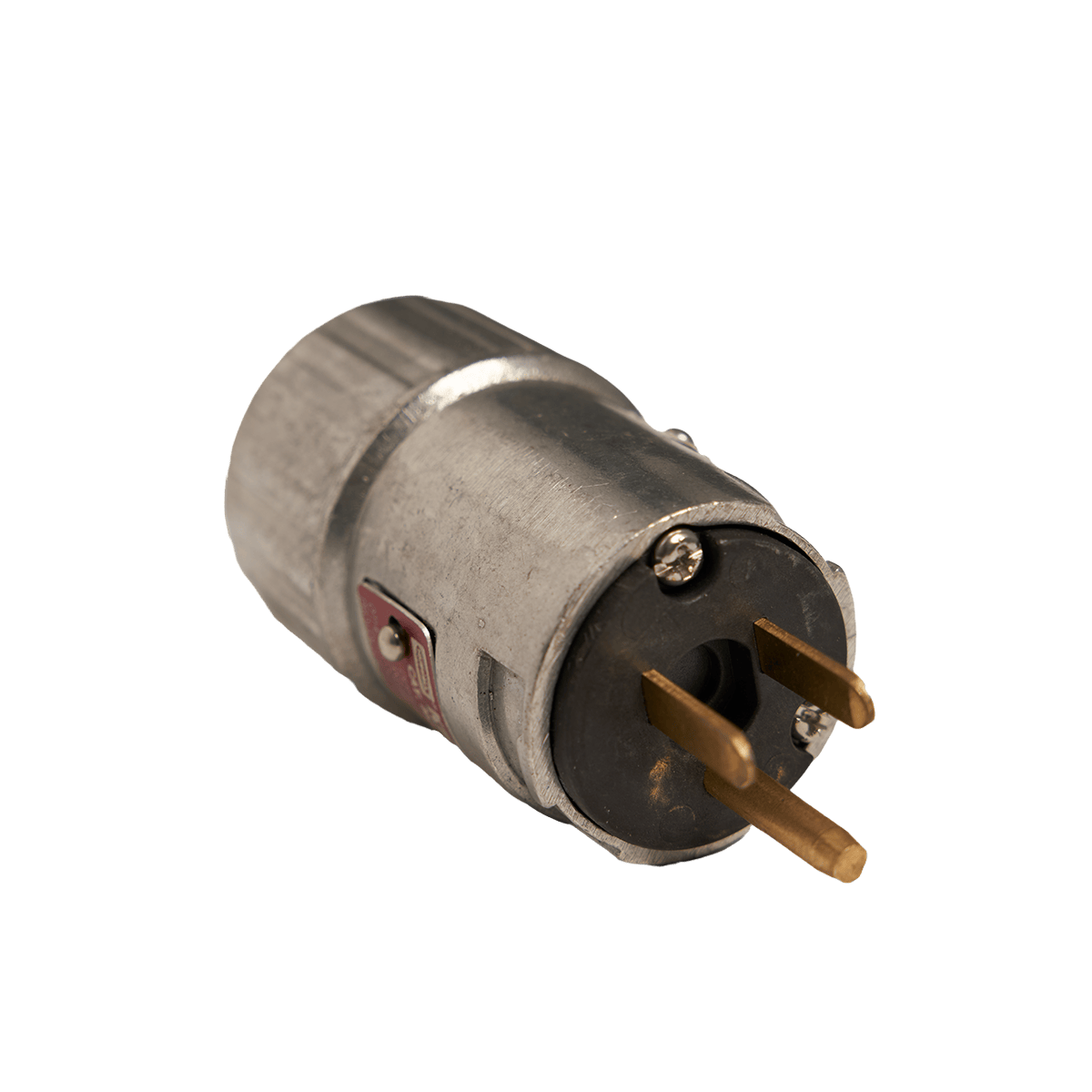

Hubbell Wiring Device-Kellems' 15A 125V Explosion Proof Male Plug provides a power connection for industrial areas where flammable gases, vapors or dusts may be present.

The factory-sealed, explosion proof design is intended to contain internal arcing and explosions and meets NEC Class I, Division 1&2, Group B requirements. Its compact, corrosion-resistant aluminum housing has an epoxy powder coat finish for industrial installation and maintenance.

UL listed for US and Canada, the plug provides NEMA 5-15R power connections in a wide range of applications, including:

  • Oil and gas drilling rigs and refineries
  • Chemical and petrochemical plants
  • Grain elevators and food processing facilities
  • Paint spray booths and storage areas
  • Wastewater treatment and pump stations
  • Fuel servicing and aircraft hangars

The 15A 125V Explosion Proof Male Plug is intended for compatible industrial power connections. Match the connection and location classification to the exact device markings.

Technical Specifications:

  • Amperage: 15A
  • Voltage: 125V
  • Configuration: NEMA 5-15P
  • Wiring: 2-Pole, 3-Wire
  • Housing Material: Copper-free aluminum
  • Finish: Epoxy powder coat
  • Factory-sealed cable entry
  • Explosion proof: NEC Class I, Division 1&2, Group B
  • Hazardous Location Rated for explosive atmospheres Division 1 & Division 2
  • UL Listed for US and Canada
  • Compact design for easy installation
  • Catalog Number: UGP15231

Hazardous Location Classifications

  • Class I, Division 1 and 2 locations where flammable gases, vapors, or liquids are present

Product familyParts and Accessories
Hazardous location ratingHazardous location
Nema ratingNEMA 5
Dimensions2 x 2 x 3
Weight0.4
Model nameUGP15231
Voltage rating125V 5-20R, 250V 6-20R
