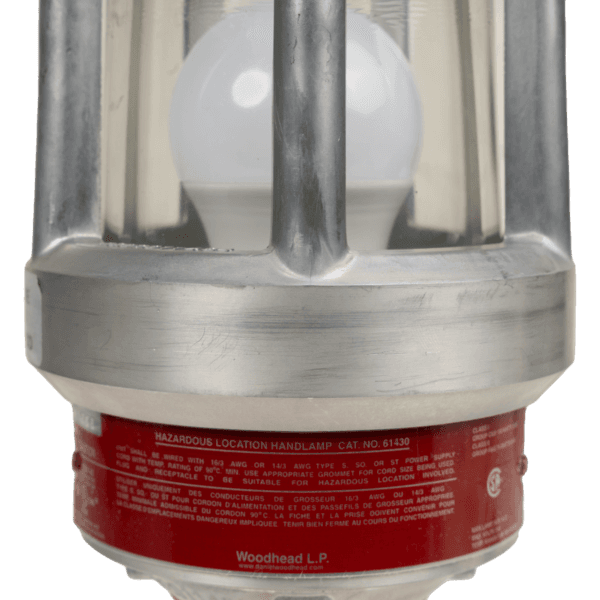

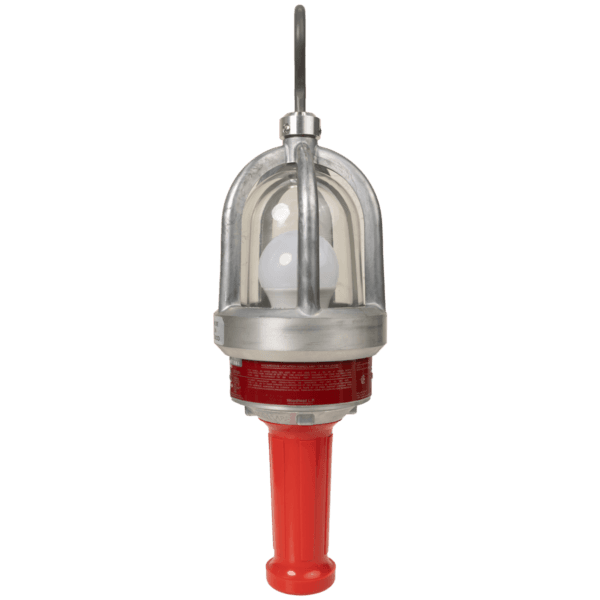

Daniel Woodhead Explosion Proof Hand Lamp Replacement

Technical Specifications & Compliance

• Hazardous Location Ratings: Factory Mutual (FM) approved for Class I, Division 1, Groups C & D environments including petroleum refineries, chemical plants, paint booths, and fuel transfer stations
• Electrical Specifications: Universal voltage 100-277V AC, 12/24V DC options available, 50/60Hz, with 15W LED array producing 1,500 lumens
• Construction: Marine-grade copper-free aluminum housing (<0.4% copper content), high-impact borosilicate glass globe, NEMA 4X water-tight rating
• Temperature Ratings: T-Code T6 (85°C max surface temperature), ambient temperature rating -40°C to +65°C
• Cord Options: Available with 25ft, 50ft, or 100ft SOW-A or SOOW heavy-duty cord with watertight strain relief
• Hazardous Location Certifications: Class I Division 1 & 2, Groups C, D and Class II Division 1 & 2, Groups E, F, G
• Standards Compliance: UL 844, CSA C22.2 No. 137, NEC Article 500

Industrial Applications & Features

• Process Industries: Suitable for chemical processing, pharmaceutical manufacturing, and paint mixing operations
• Energy Sector: Certified for use in oil & gas facilities, refineries, and fuel storage areas
• Marine & Offshore: Salt-water resistant construction for shipyard, offshore platform, and marine terminal applications
• Confined Space Entry: Ideal for tank inspection, vessel maintenance, and confined space work requiring portable explosion-proof lighting

Maintenance & Warranty Information

• 50,000-hour LED life expectancy
• 5-year manufacturer warranty
• IP66/67 ingress protection rating
• Field-replaceable LED module and globe assembly
• Complete documentation package including hazardous location certificates

Ordering Information

Model Number Format: XP-HL-LED-(cord length)-(voltage)-(cord type)

• NSN: Available for military procurement
• GSA Schedule: Available for government purchase
• Made in USA – TAA Compliant

Purchase & Support

Contact authorized distributors for volume pricing and availability. Rapid shipment available for emergency replacements. Custom configurations available upon request.
