Product Overview

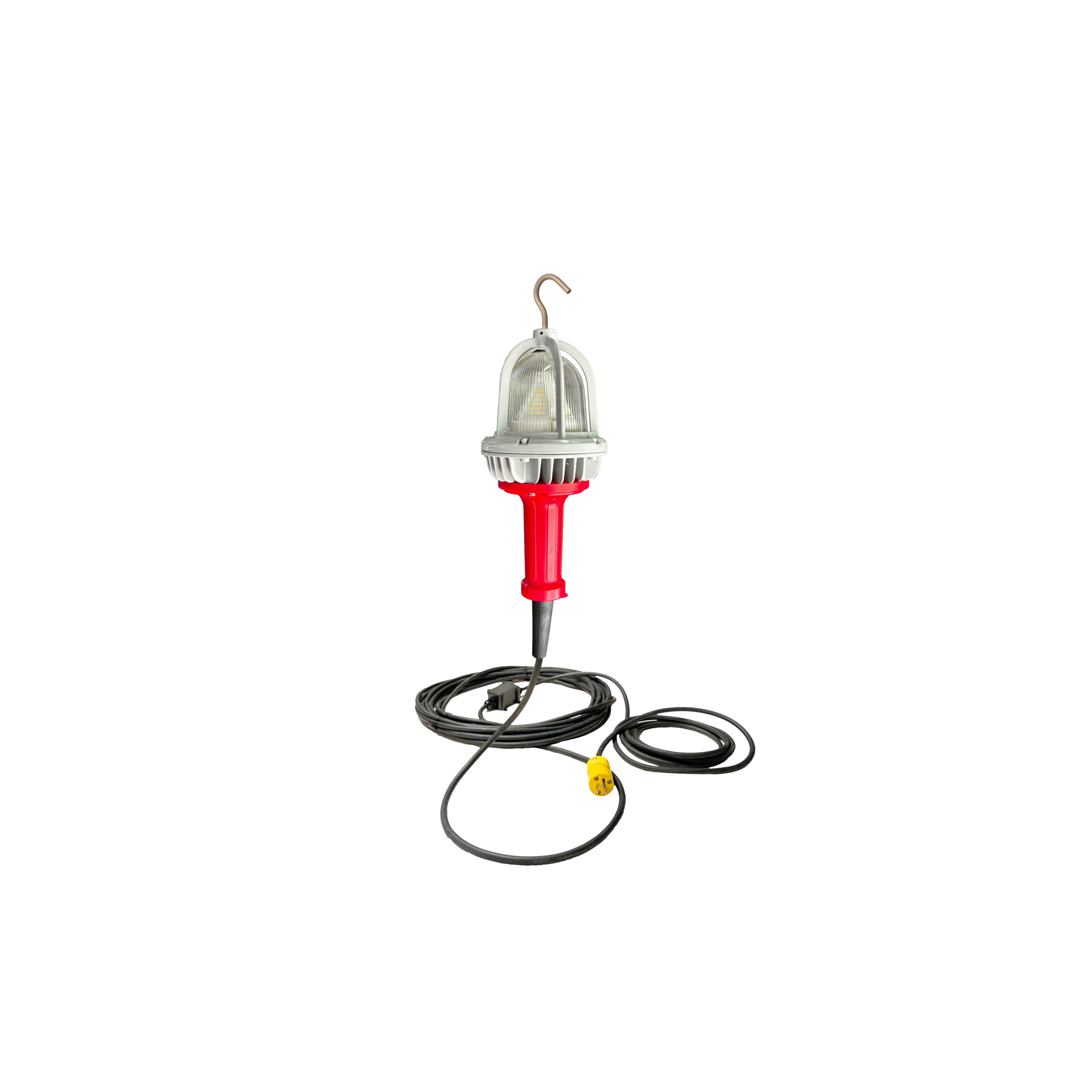

The TriCert Hand Lamp from WorkSite Lighting is a portable explosion-proof LED work light engineered for hazardous locations where certified safety, portability, and performance are mission-critical. Compact and durable at just 2.3 kg (5 lb), it delivers high-efficiency illumination trusted in Class I, II, and III Division 1 & 2 environments across the oil, gas, and chemical industries.
Available in two models, the TriCert provides reliable, glare-free light output for inspection, maintenance, and confined-space operations:
- TriCert 15 — 15 W producing 2,460 lumens
- TriCert 25 — 25 W producing 4,100 lumens
Both versions deliver outstanding brightness in a compact housing designed for portability and long-term dependability.
Power & Voltage Options
TriCert supports two universal input ranges to integrate with any site’s electrical system:
- 12–24 V DC low-voltage models for extra safety in confined, damp, or conductive areas.
- 120–277 V AC models for connection to standard industrial mains.
Optional inline step-down transformers (120 V or 240 V to 12/24 V) allow operators to safely run low-voltage lights from standard power sources — improving safety compliance and reducing deployment complexity on mixed-voltage sites.
Construction & Protection
Designed for daily use in hazardous conditions, the TriCert features a copper-free die-cast aluminum housing with a durable epoxy coating, an impact-resistant protective cage, and IP66-rated ingress protection. It’s built to withstand vibration,
corrosion, and rough handling common in offshore, refining, and utility maintenance operations. Rated IK08 for impact resistance, the TriCert ensures dependable illumination where downtime is not an option.
Certifications
- ATEX: SGS25ATEX0007X — II 2G Ex db mb IIC T6/T5 Gb; II 2D Ex tb IIIC T80/95°C Db
- IECEx: IECEx SGS 25.0004X — Ex db eb mb IIC T6/T5 Gb; Ex mb tb IIIC T80/95°C Db
- UL / CSA:
- Class I, Division 1, Groups C & D
- Class I, Division 2, Groups A, B, C, D
- Class II, Division 1, Groups E, F, G
- Class II, Division 2, Groups F, G
- Class III
Every unit is assembled in the USA and backed by WorkSite Lighting’s hazardous-location engineering expertise.
Applications
- Oil and gas production, refining, and petrochemical plants
- Offshore platforms, shipyards, and dockside maintenance
- Power generation, chemical facilities, and utilities
- Food and grain processing, milling, and storage
- Mining, tank entry, and confined-space maintenance
- Turnarounds, shutdowns, and emergency response operations
Model Options
| Model | Description | Voltage | Output |
|---|---|---|---|
| WL-THL-15-LV | TriCert Hand Lamp, 15 W | 12–24 V | 2,460 lm |
| WL-THL-25-LV | TriCert Hand Lamp, 25 W | 12–24 V | 4,100 lm |
| WL-THL-15-HV | TriCert Hand Lamp, 15 W | 120–277 V | 2,460 lm |
| WL-THL-25-HV | TriCert Hand Lamp, 25 W | 120–277 V | 4,100 lm |
Technical Specifications
| Parameter | TriCert 15 | TriCert 25 |
|---|---|---|
| Wattage | 15 W | 25 W |
| Lumen Output | 2,460 lm | 4,100 lm |
| Voltage Options | 12–24 V DC (low-voltage) or 120–277 V AC (industrial mains) | |
| Certifications | ATEX: SGS25ATEX0007X — II 2G Ex db mb IIC T6/T5 Gb; II 2D Ex tb IIIC T80/95°C Db IECEx: IECEx SGS 25.0004X — Ex db eb mb IIC T6/T5 Gb; Ex mb tb IIIC T80/95°C Db UL / CSA: Class I Div 1 (C, D); Class I Div 2 (A, B, C, D); Class II Div 1 (E, F, G); Class II Div 2 (F, G); Class III | |
| Housing & Protection | Copper-free die-cast aluminum, epoxy-coated; impact-resistant cage; IP66; IK08 | |
| Approx. Weight | 2.3 kg (5 lb) | |
Why Choose the TriCert Hand Lamp
- Certified explosion-proof performance for hazardous-area safety worldwide
- Triple global approvals (ATEX, IECEx, UL/CSA) for maximum compliance
- Compact, lightweight design for hand-held and portable use
- Dual-voltage options for flexibility across industrial sites
- Rugged, corrosion-resistant construction built for refinery and offshore duty
- Assembled in the USA with full hazardous-location technical support
